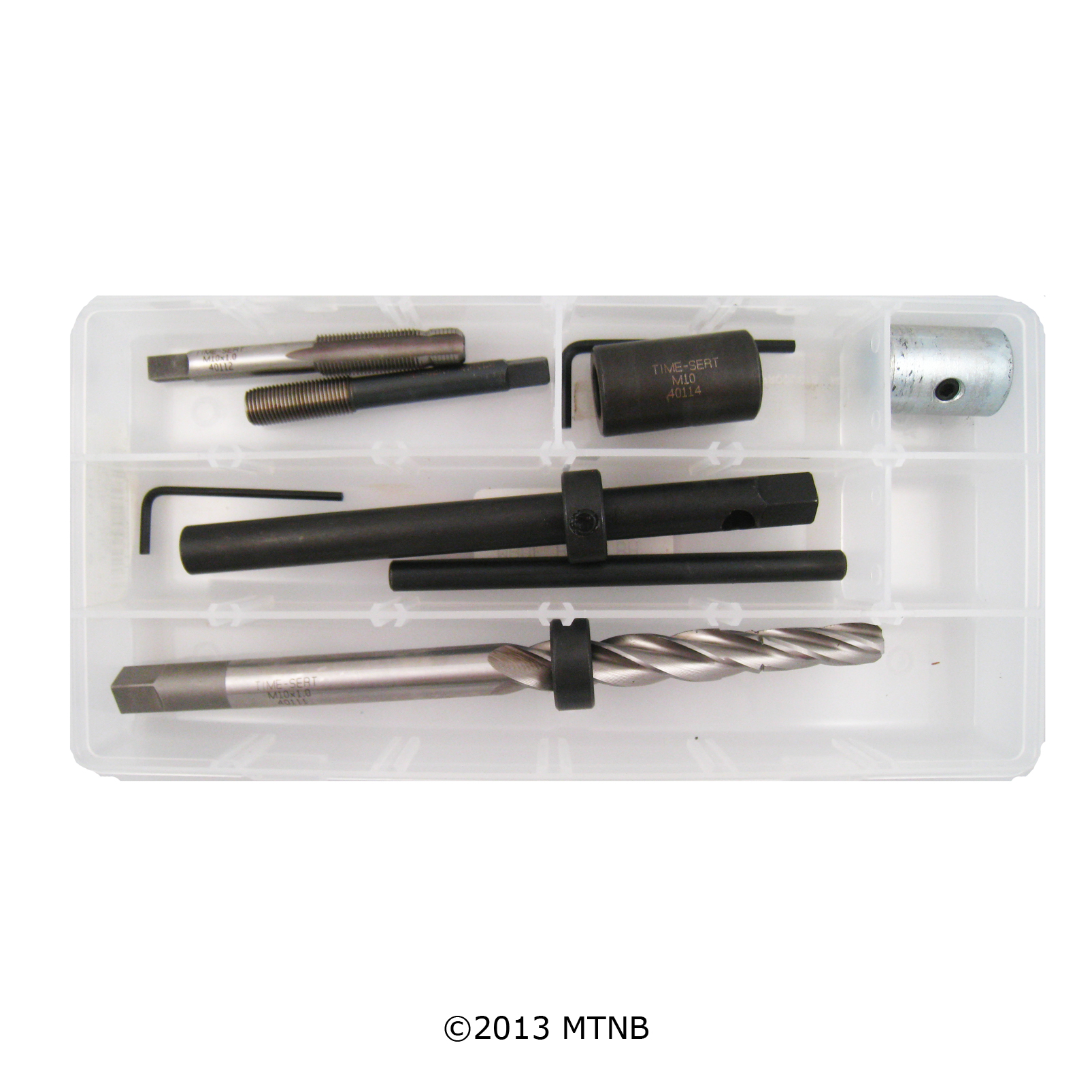

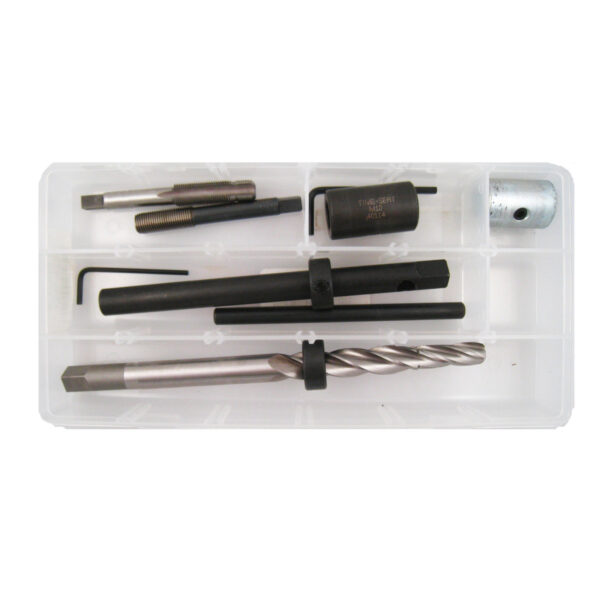

Description Time Sert 4010E M10x1.0 kit tooling works very well in holes 6″ deep or more. This tooling will repair spark plugs that are fully threaded or a half threaded plug as in the NGK spark plugs p/n CR9EHIX-9 which has a straight section between the threads and washer. There are 2 movable collars included, the long black collar will repair full thread spark plugs which are flush to the surface and the silver collar will create a special countersink step required for the CR9EHIX-9 Honda style spark plugs. Inserts not included order separately. If repairing the CR9EHIX-9 style plugs use the 9mm length insert p/n 40101. You will use the silver collar to create the countersink step as per the instruction. M10x1.0 extended p/n 4010E INSTRUCTIONS These instructions are specific to the 4010E only. THIS KIT DOES NOT CONTAIN INSERTS. PLEASE ORDER YOUR INSERTS FROM THE LINKS BELOW. Click here: for video instructions Order Washer Seat Inserts Click Here Get Useful Tools, Tap Guides, and More Click Here
